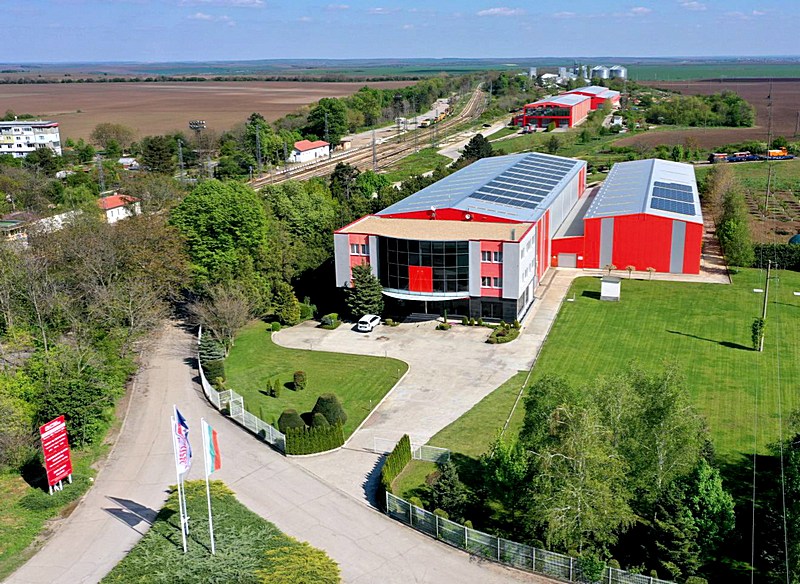

For the first time in Europe - a 100% carbon-neutral railway shunting guaranteed by its own solar plant.

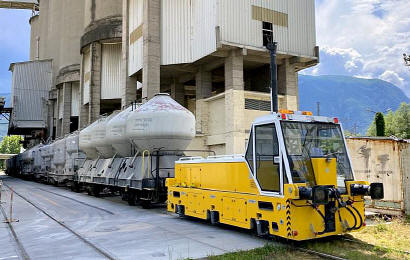

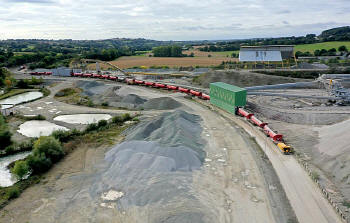

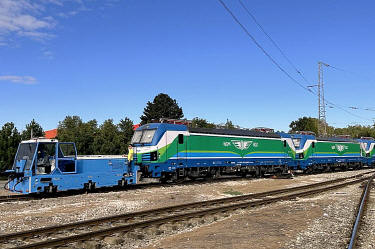

Proudly presenting our best-seller in Europe, including a view of an ES3000 electric shunter at work in the UK

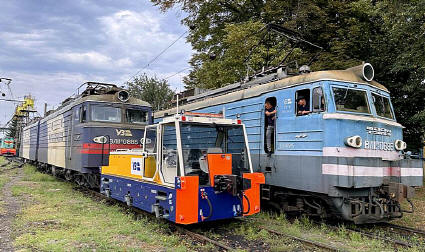

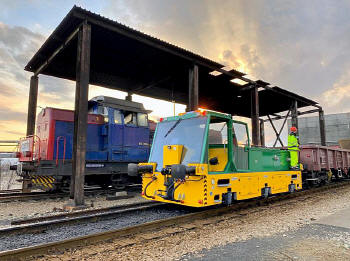

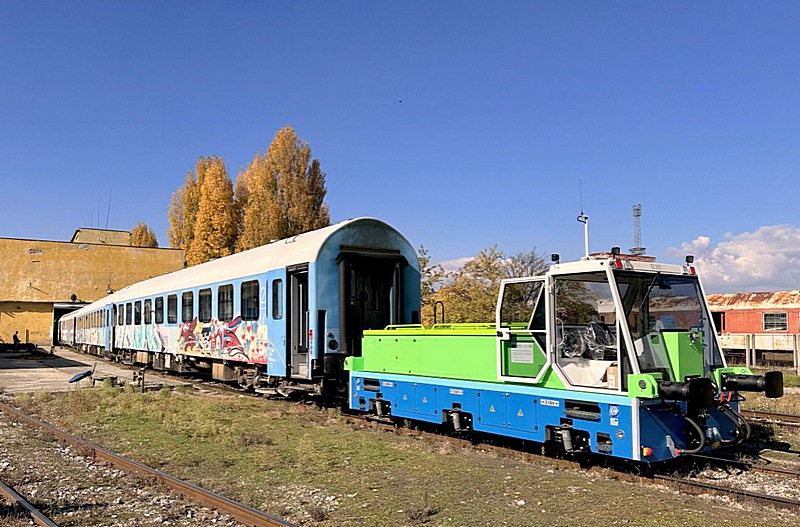

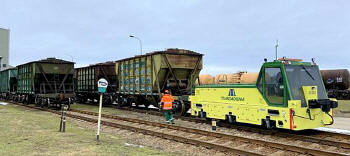

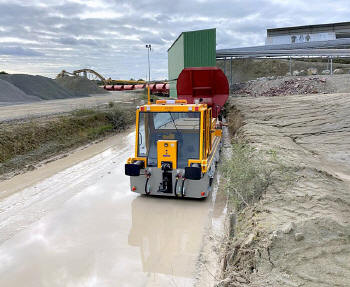

The ES3000 battery electric shunter can be found at work in many aspects of the rail industry, including railway facilities tasks, in aggregate industries, and in metallurgical plants.

The ES3000 heavy battery shunter for every industrial application!

Technical Parameters:

Own mass/weight : 48 tons
Dimensions LxWxH (w/o couplers) : 6200x2400x2800mm
Operational Gauge : 1435mm
Tractive force : 150kN
Towing capacity : 3,000 tons
Maximum charge time : 5.5 hours
Maximum speed : 6.3 mph (10 kph)
Train pneumatic brake system : 5 bars
Colour scheme (livery) : as per customer specification

Main Features:

Rigid welded frame construction of 100m solid steel plates
Solid steel traction wheels –locomotive industry at its best
Heavy and robust machine with low centre of gravity
Durable batteries for industrial applications and optimized for extreme temperatures
Charging is easy and possible anytime, with no special infrastructure needed

Maintenance efforts - close to zero
Extra features and options available on request

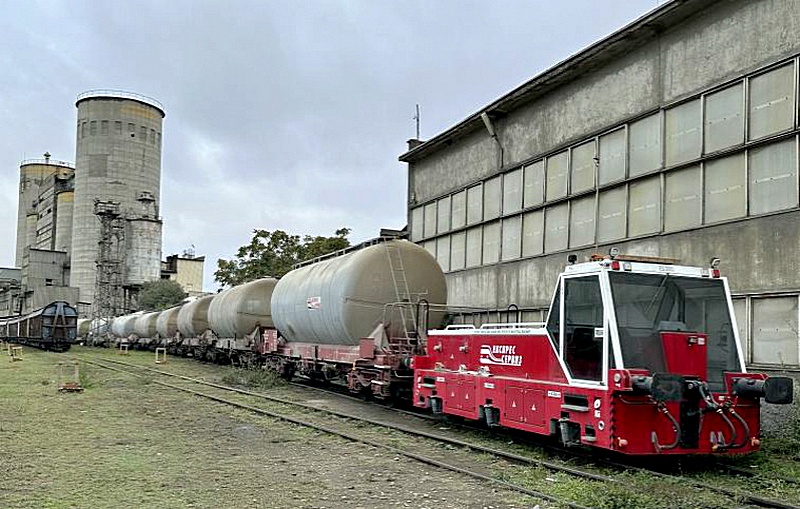

ES3000 battery electric shunting locomotives and tank wagons.

The ES3000 battery electric shunter is designed with easy logistics in mind - designed to fit to a standard road truck and/or easy rail transport, are designed for easy lifting & battery replacement, using a special platform wagon by Express Services.

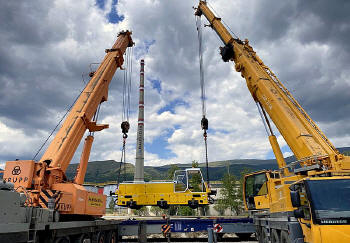

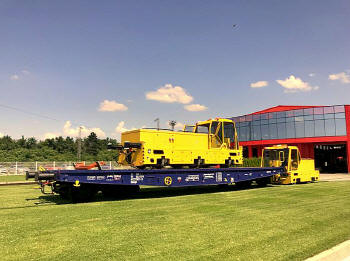

ES3000 locomotives being craned on to/off road/rail transport and on a rail flat wagon for transportation

The ES3000 features battery technology that is is energy efficient, with no idle working costs.

The full battery charge price is max. £35.00 (@ £0.175 per kWh) and total energy consumption is < 20000kWh / year
No need of winter heating, no freezing parts, and no need of complex diesel fuelling procedures
The locomotives feature regeneration braking when stopping (recharging battery) and there's no thermal waste of energy

Battery technology is clean, emission free and low noise, for the responsible industry of tomorrow - wherever there is environmentally and socially responsible industry - Express Service are there to help with our solutions.

Battery technology optimizes shunting manpower - radio remote control allows one operator action/no full shunting crew needed for coupling, switching, driving.
No heavy locomotive legislation is applicable, with training certificates issued by the manufacturer

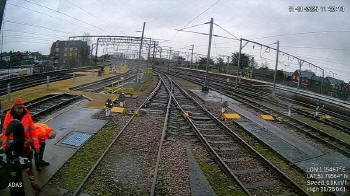

The ES3000 is a very intuitive and safe human-machine interface - the telemetry app is connected and digital, on board with CCTV leading to real time transmission for decision makers and managers.

ES3000 is part of Industry 4.0

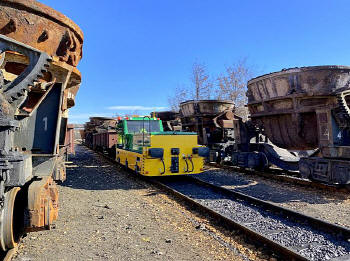

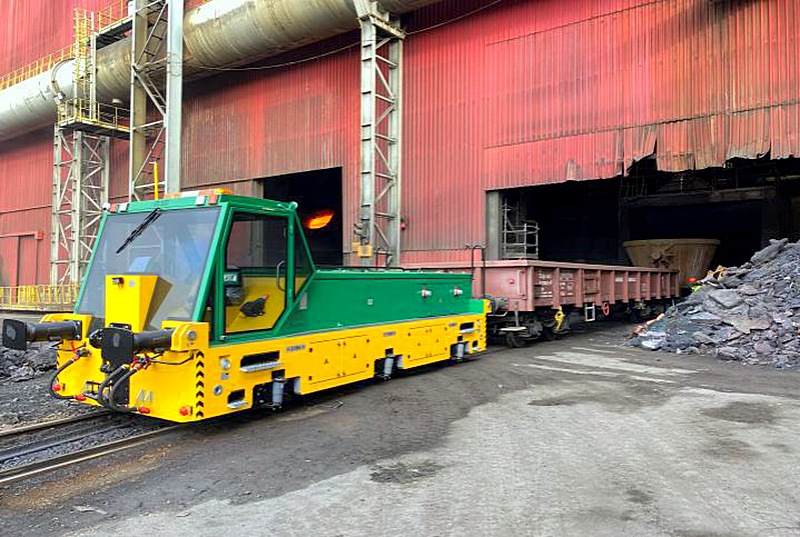

Three ES3000 battery electric shunters were delivered in 2021 to a metallurgical factory at Aurubis in Bulgaria - they replaced three old diesel locomotives.

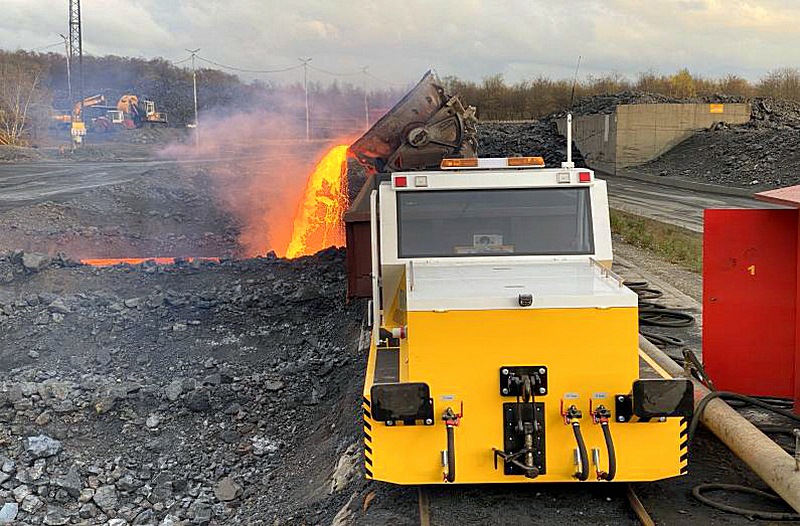

Shunting work at slag cooling at Aurubis goes on 24/7 - one ES3000 is always on charge while two are always working.

Operational Gauge : 1435mm
Own weight : 48 tons
Dimensions LxWxH (w/o couplers) : 6200x2400x2800 mm
Colour scheme (livery) : as per customer spec
Driven axles : 3
Battery capacity : 220 kWh
Rated power : 90 kW nom/210 kW max
Train pneumatic brake system : 5 bars
Tractive force : 150kN
Towing capacity : 3,000 tons
Battery capacity : 220kWh
Maximum charge time : 5.5 hours
Battery life in cycles : >1800
Maximum speed : 6.3 mph (10 kmph)

Safety Features:

Emergency stop button cabin - Cat. 3 as per EN954-1
E-stop buttons on all frame edges - Cat. 3 as per EN954-1
E-stop button on RC transmitter - Cat. 3 as per EN954-1
Revolving beacon LED light - on top of cabin indicating movement
Signal horn - 110 dB, adjustable air flow
LED lights indicating direction - white and red LED lights automatically indicate direction of movement
Anti-slip surface on walks - on both frame sides
Handrails –frame, battery covers - handrails on frame, covers, cabin
Signal buzzer - automatic, indicates movement
Dead man function - factory programmable (set as per customer requirement)

Markings and Safety:

Labels on customer language - English
CE - marking and certificate - CE+UKCA
Earthing marks
Keys/Locks on cabin doors - preventing unauthorized access
Key protected battery exhaust - key overrides battery exhaust (30% BDI) stop
Key protected P-brakes - disengagement of P-brakes possible following procedure
Reflective strips on frame edges
Wheelsets electrical resistance measurement - protocol for 3 wheelsets
Circuit breakers described - list of CB -each electrical cabinet

Technical Data:

Gauge / AR measure - 1435/ 1360mm
Driven wheelsets - all 3 wheelsets driven
Max. speed and acceleration - max. speed and acceleration (factory adjustable parameters)
Service braking ramp and mechanical P-braking - automatic P-braking
Screw compressor on board - capacity of 3000 l/min
Train brake apparatus on board - electronic valve, filter group
Batteries on board - 2x batteries on board 1400Ah each, 80VDC nominal
Battery chargers on board
Wheelsets + torque reaction rods – (See installation of wheelsets)
Special coupling system upon customer’s request

Cabin and Comfort:

Access to cabin (both sides) - steps, handrails present

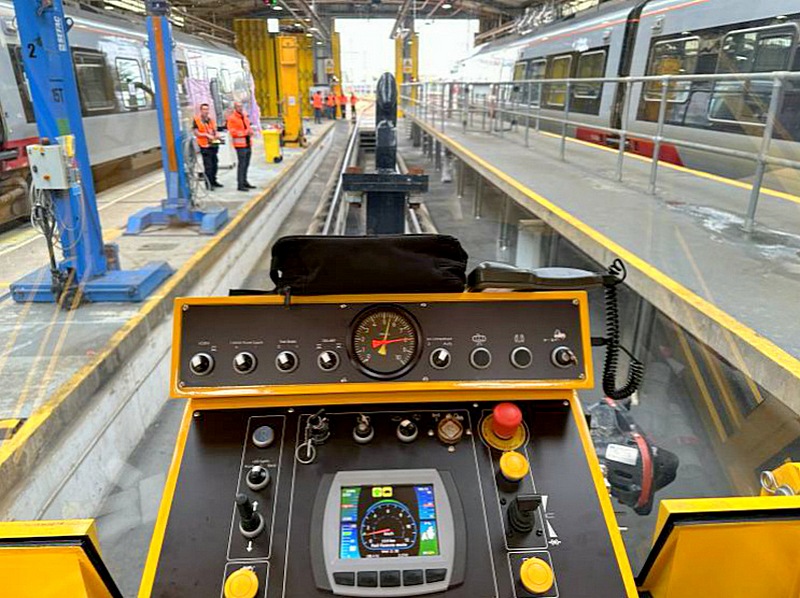

Driver desk with all controls - 2 consoles, all controls, pressure gauge
Diagnostic connectors - right-side 4 diagnostic connectors
Main driver seat - adjustable, turning mechanism
Second driver seat - foldable seat
Cabin electric heating
Rain wipers - front glass
Anti-slip insulation floor cover - rubber mat
Video surveillance system onboard - DVR, 3 IP cameras with optional cabin video installation at the discretion of the customer
Cup holders - 1 or 2 cup holders on the sides

Function Test – Cabin Controls:

Vehicle start, initialization, N-sign
Compressed air first generation - Electronic safety protection against movement at low pressure levels (factory adjustable)
Forward/Backward movement
Acceleration/Deceleration ramps - two modes of deceleration
Horn, Sanding, Light controls
SIFA vigilance (dead-man) function
Air drain function test - manual operation of air drain
Air brake system overfill function - overfills system by 0,05b increments (factory adjustable)
Cabin / RC control mode switch - interlock test
Emergency stop function

Function Test – Remote Controls:

Vehicle start, initialization, N-sign
Cabin / RC control mode switch -iInterlock test
Forward/Backward movement
Acceleration/Deceleration ramps - two modes of deceleration
 Horn, Sanding
RC battery charging
RC battery exhaust simulation
Vehicle restart procedure test
Emergency stop function

Function Test – Other Functions:

Liquid cooling system - functional check
Motors cooling system - functional check
Air filters automatic drain
Air tanks automatic drain - valves open at switch off
Battery charging process
Airmix-technology function
Emergency stop buttons on edges - functional check
12VDC power supply in cabin
Camera system with data storage

Express Service declaration of conformity

According to the Council Directive relating to machinery 2006/42/EG, appendix II A - this is to certify that the machine described herein after, as designed, built and distributed by us, is in accordance with the relevant safety and health requirements set forth in the council directive. Any modifications of the machine introduced without approval will render this declaration invalid.

Description of the machine - rail bound electric vehicle for shunting freight wagons
Machine type and number - ES 3000, ES 3019
Customer Order - Hegenscheidt MFD, Germany
Relevant EC directives - council directive relating to machinery 2006/42/EG, council directive relating to electrical equipment designed for use with certain voltage limits 2006/95/EC, council directive relating to electromagnetic compatibility (EMC) 2004/108/EC
Harmonized standards adhered to, in particular - EN15085-2, EN ISO 12100, EN 60204-1, EN 14121-1
